When you install a new multifunctional car radio for 2001-2005 VW Volkswagen Passat B5, you can gain more entertainment and convenience than the factory radio. Since the car radio is plug-and-play, the whole installation process of 2001-2005 VW Volkswagen Passat B5 car radio is not so difficult that you can try to finish it all by yourself. The following is a detailed installation guide for the related vehicle type, and you can follow it before you start your installation.
2001-2005 VW Volkswagen Passat B5 Radio after installation
Tips about the installation:
1.Please disconnect the power before the installation.
2.Please prepare a lever and a screwdriver before the removal and the installation.
3.Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.
4.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400
2001-2005 VW Volkswagen Passat B5 car radio installation guide
1. The original car radio.
The original car radio
2. Prepare four removal keys.
Prepare four removal keys

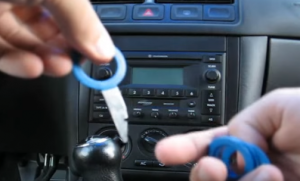

3. There are four removal slots in this radio. Insert the removal keys in the holes of the radio.
There are four removal slots in this radio. Insert the removal keys in the holes of the radio
4. Pull outwards to release the radio.
Pull outwards to release the radio
5. Remove the four removal keys from the radio.
6. Disconnect the connectors and cables at the back of the radio.

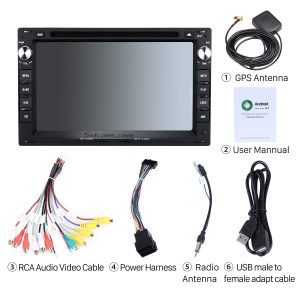

7. Check all the accessories for the new Seicane car radio.
Check all the accessories for the new Seicane car radio
8. Connect the harnesses to the back of the new Seicane car radio.
Connect the harnesses to the back of the new Seicane car radio
9. Connect the Seicane car radio to your original radio’s plugs.
10. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.
11. Put the new Seicane car radio into the dash.
12. Put everything into their original place. All the installation is done.
Don’t worry if you have any doubts about the above guide. You are free to contact with your dealer or a professional for help. But if you still think it hard for you to finish the whole installation process by yourself, you can go to a car radio upgrade center to have the radio installed by a technician. Besides, if you don’t know how to select a suitable car radio, you can check the link below which is a remarkable 2001-2005 VW Volkswagen Passat B5 bluetooth gps car radio from Seicane. Please click:
Upgraded to the intelligent pure Android 5.1.1 operation system and featured with a RK3188 1.6 GHz Cortex A9 Quad-core processor, this car radio can be one of your wise choices to replace your factory radio. Coming with a 7 inch multi-screen touch screen with 1024*600 resolution, this radio enables you to enjoy the best display effect of videos, movies, TV programs, etc, as well as the viewing effect of the road ahead. Besides, this radio supports an aftermarket rearview camera, steering wheel control, wifi connection, mirror link, file management, etc. Just purchase this 2001-2005 VW Volkswagen Passat B5 bluetooth gps car radio and get it installed in your beloved car. Wish you have an unforgettable driving experience with it!
