Easy installation for 2008-2011 VW Passat CC head unit with Bluetooth GPS wifi DVD Ipod

As far as the installation is concerned, to replace a factory radio with a new aftermarket radio in a Volkswagen Series car would be quite easy. If you are a car owner of a 2008-2011 VW Passat CC, to get a new VW Passat CC head unit, you can go to a local car stereo upgrade center to pick a suitable one and have it installed there, this would be quite easier for you. However, it may cost you more money to upgrade your factory radio in a store than to upgrade by yourself with a cheaper head unit with the similar capabilities from a car market or an online shop. To save money, you could upgrade your factory car radio with the latter way. If you are a green hand on the installation, you just need to ask a professional technician for help.

2008 2009 2010 2011 VW Passat CC head unit after installation

2008 2009 2010 2011 VW Passat CC head unit after installation

There might be a little difference between different Volkswagen Series cars, it’s strongly recommended you should ask for the detailed instruction about the installation of a new head unit for your Volkswagen car. The following is the installation guide for a 2008-2011 VW Passat CC head unit for your reference.



Precautions:

  1. Please apply the parking brake and remove the negative cable on the vehicle battery before the removal to ensure security.
  2. A lever and a screwdriver need to be prepared before the installation.



Please refer to the step-by-step instruction as a reference:



Step1: Remove the trim panel.

Please pry around the trim panel with a lever. While prying, please loosen the trim panel with your one hand. When the trim panel is loosened, please remove the trim panel off the dashboard and gently place it aside for further removal.



2008 2009 2010 2011 VW Passat CC head unit installation step 1

2008 2009 2010 2011 VW Passat CC head unit installation step 1

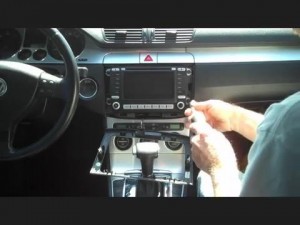

Step2: Remove the four screws on the radio.

Please unscrew the four screws which are holding the radio at four corners with a screwdriver. Then keep them well in a small box for the installation of a new head unit.

2008 2009 2010 2011 VW Passat CC head unit installation step 2

2008 2009 2010 2011 VW Passat CC head unit installation step 2



Step3: Take the factory radio out of the dash.

After the four screws are unscrewed, you can easily pull the factory out of the dash.

2008 2009 2010 2011 VW Passat CC head unit installation step 3

2008 2009 2010 2011 VW Passat CC head unit installation step 3

Step4: Disconnect the wiring harness.

Before you put the factory radio aside, please disconnect the wiring harness at the back of the factory radio.

2008 2009 2010 2011 VW Passat CC head unit installation step 4

2008 2009 2010 2011 VW Passat CC head unit installation step 4

Step 5: Connect the new head unit to the original wiring harness as the user manual or the wiring diagram shows.



Step 6: Turn on the new unit to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.



Step 7: Put the new unit into the dash and install the four screws.



Step 8: Install the trim panel into its original place.





The above is the whole process of the installation of a new 2008-2011 VW Passat CC head unit. Wish it can be helpful for you. If you have any questions before or during the installation, please turn to a dealer for help for a successful replacement in you vehicle.



If you don’t get an ideal car stereo to upgrade your VW Passat CC, I’d like to recommend one which can fit your VW Passat CC well with high performance and competitive price to you. To know more features, please click:



http://www.seicane.com/car-dvd-player-gps-radio-replacement-system-for-volkswagen-series-support-bluetooth-3d-voice-navigation-wince-system-with-3g-wifi-20-disk-virtual-cd-changer-c004



This 7 inch touch screen car DVD player features an amazing 800*480 pixel screen resolution for a visually radiant display is a modern and intelligent 2008 2009 2010 2011 VW Passat CC head unit. With the built-in GPS, you’ll get features like: lane assist, voice guidance, 3-D views, intelligent route planning, and points of interest (POI). What’s more, you can play bluetooth music, DVDS, VCDs and all your CDs as well to maximize your driving exhilaration and keep your passengers pleasant on the trip.¬† The Internet’s most popular video and audio file formats like DVD/VCD/CD/MP3/MPEG4/DIVX/CD-R/WMA can be all supported. Take this 2008 2009 2010 2011 VW Passat CC head unit as your companion, you’ll fill with relaxation and enjoyment all the way.
