How to install 2008-2012 Mazda 6 Ruiyi Radio with navigation system steering wheel control

Look at this image, this is Seicane 2008-2012 Mazda 6 Ruiyi Radio after installation.

2008-2012 Mazda6 Ruiyi Radio after installation

2008-2012 Mazda6 Ruiyi Radio after installation

If you are owners of Mazda 6 Ruiyi, you may find the factory radio of Mazda 6 Ruiyi can hardly meet all your needs. Though Mazda 6 Ruiyi Radio is pretty good. But there are few functions in it. So it’s necessary to install a new aftermarket radio instead of the original one. It’s really awesome, and I’d like to share the experience of installation with you.

If you have the same dashboard with the picture shows, you can follow the instructions below.



2008-2012 Mazda 6 Ruiyi Radio installation

1·Start your removal by removing the negative cable from the battery. Then return to the inside of the Mazda 6 Ruiyi.

2·Next remove your cup holder.

2008-2012 Mazda6 Ruiyi Radio installation step 1

2008-2012 Mazda6 Ruiyi Radio installation step 1

3·Unscrew and remove the shift knob.

2008-2012 Mazda6 Ruiyi Radio installation step 2

2008-2012 Mazda6 Ruiyi Radio installation step 2

4·Remove the shift trim panel with your fingers.

2008-2012 Mazda6 Ruiyi Radio installation step 3

2008-2012 Mazda6 Ruiyi Radio installation step 3

5·Then remove both sides trim panel of the speed control.

2008-2012 Mazda6 Ruiyi Radio installation step 4

2008-2012 Mazda6 Ruiyi Radio installation step 4

6·Pull out the panel and set it aside.

2008-2012 Mazda6 Ruiyi Radio installation step 5

2008-2012 Mazda6 Ruiyi Radio installation step 5

7·Remove four screws on each side of the speed control with a Phillips-screwdriver.

2008-2012 Mazda6 Ruiyi Radio installation step 6

2008-2012 Mazda6 Ruiyi Radio installation step 6

8·Pull out the speed control slowly.

2008-2012 Mazda6 Ruiyi Radio installation step 7

2008-2012 Mazda6 Ruiyi Radio installation step 7

9·Find two screws under the radio and remove them.

2008-2012 Mazda6 Ruiyi Radio installation step 8

2008-2012 Mazda6 Ruiyi Radio installation step 8

10·Push the top panel and set it aside.

2008-2012 Mazda6 Ruiyi Radio installation step 9

2008-2012 Mazda6 Ruiyi Radio installation step 9

11·Remove two screws with a Phillips-screwdriver as the picture shows.

2008-2012 Mazda6 Ruiyi Radio installation step 10

2008-2012 Mazda6 Ruiyi Radio installation step 10

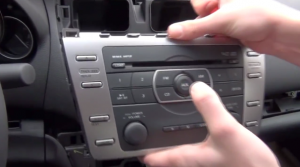

12·Pull out the factory radio slowly.

2008-2012 Mazda6 Ruiyi Radio installation step 11

2008-2012 Mazda6 Ruiyi Radio installation step 11

13·Disconnect the original harness and set the factory radio aside.

2008-2012 Mazda6 Ruiyi Radio installation step 12

2008-2012 Mazda6 Ruiyi Radio installation step 12

14·Make antennas and cables connected step by step as installation instructions show, and you should be very careful when you are doing this for it will affect whole procedure.

15·Connect the new radio to your Mazda 6 Ruiyi, you should check whether your connections are correct, the new unit is in right position, and you’d better have a tidy for the cables.

16·Check whether the unit is working without problem.

17·If everything is OK, firm removed screws that are put aside, then make trim panel back on your new unit.



By the way, you should make sure whether the aftermarket radio fits your car before installation, and here is a good aftermarket radio of Seicane which fits Mazda 6 Ruiyi well:

http://www.seicane.com/android-in-dash-car-dvd-player-radio-gps-navigation-system-for-2008-2012-mazda-6-ruiyi-with-bluetooth-mirror-link-hd-touch-screen-obd-dvr-tv-usb-sd-3g-wifi-rearview-camera-ipod-s168001

This Seicane Mazda 6 Ruiyi Radio can be a good choice for you. It has intelligent pure android 4.4.4 operation system and 8 inch HD 1024*600 multi-touch screen.

You can perform Google search on the road with quick search box, play online games, watch videos, download online data and check emails by connecting to any WiFi hotspot in range or 3g internet, download any applications in the android market for access to games, Skype, MSN, YouTube, twitter, E-Book, Gmail etc. And it is your perfect road companion.



Good luck to you, wish you can install the new Mazda 6 Ruiyi Radio by yourself!
