How to Install a 2002-2006 Dodge Ram pick-up Car Radio with DVD Player Bluetooth GPS Navigation System

There is no denying that an ideal car radio can not only help you create a more comfortable and convenient car interior environment but also enrich your driving experience to a large extent. Thus, when you find your original car radio cannot be compatible with a wide range of upgraded and new features, it is highly suggested that you should replace your factory radio with a modern multifunctional car radio. If you own a 2002-2006 Dodge Ram pick-up and plan to upgrade your factory radio, then you can refer to the following 2002-2006 Dodge Ram pick-up car radio installation instruction.

2002-2006 Dodge Ram pick-up Car Radio after installation

2002-2006 Dodge Ram pick-up Car Radio after installation

Precautions for this installation:

1.Before you start up any work, park your car well and unplug the negative power cable to avoid any danger.

2.Please make sure that all fastened wires are isolated with electrical tape.

3.Please make sure the ignition is off to avoid short circuit.

4.Please prepare a lever and a screwdriver before the removal and the installation.

5.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd- 400

2002-2006 Dodge Ram pick-up car radio installation instruction

1. Remove the trim piece above cup holder with a lever.

Remove the trim piece above cup holder with a lever

Remove the trim piece above cup holder with a lever

2. Remove 2 screws behind the trim piece.

Remove 2 screws behind the trim piece

Remove 2 screws behind the trim piece

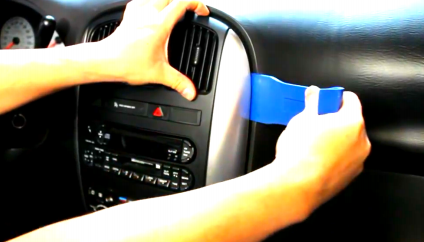

3. Gently pry around the side of trim panel with the lever and then remove the trim panel.

Gently pry around the side of trim panel with the lever and then remove the trim panel

Gently pry around the side of trim panel with the lever and then remove the trim panel

4. Remove 4 screws which hold the factory radio in place.

Remove 4 screws which hold the factory radio in place

Remove 4 screws which hold the factory radio in place

5. Take out the original radio.

Take out the original radio

Take out the original radio

6. Disconnect the smaller harness on the behind of the original car radio.

Disconnect the smaller harness on the behind of the original car radio

Disconnect the smaller harness on the behind of the original car radio

7. Check all the accessories for the new Seicane car radio.

Check all the accessories for the new Seicane car radio

Check all the accessories for the new Seicane car radio

8. Connect the harnesses to the back of the new Seicane car radio.

Connect the harnesses to the back of the new Seicane car radio

Connect the harnesses to the back of the new Seicane car radio

9. Connect the Seicane car radio to your original car radio’s plugs.

10. Install four screws and trim panel.

11. Install 2 screws behind the trim piece and the trim piece.

12. Turn on the new radio and have a comprehensive test if everything works well. If it doesn’t, please check whether all the cables are connected correctly.



Please don’t worry if you have any doubts about the installation or your car radio. In that case, you can consult your dealer or turn to a professional for help. Or you can ask someone experienced to help you install the new car radio alongside. Anyway, it is essential for you to select an ideal car radio for your beloved car. Here I would like to share a remarkable 2002-2006 Dodge Ram pick-up car radio from Seicane with you. Here comes the link, please click:

https://www.seicane.com/hd-touch-screen-2002-2006-dodge-ram-pick-up-radio-bluetooth-gps-navigation-system-support-obd2-mirror-link-dvr-rearview-camera-steering-wheel-control-tv-video-usb-sd-wifi-s125002e

This remarkable car radio based on the most suitable Android 6.0 operation system and 8-core 1.5 GHz RK-PX5 A53 processor , comes with a wide range of comprehensive features to meet your various needs.

Thanks to the powerful 3D GPS navigation system of high accuracy, you can accurately know your current locations and find the most suitable way to reach your destinations according to turn-by-turn directions and voice prompts. Besides, with dual zone function, this car radio enables you to freely listen to beautiful music behind the scene under GPS mode. And the music can automatically switch to GPS voice.

As for the entertainment options, you have several choices. This car radio enables you to play CDs, VCDs, Bluetooth music and FM/AM radio to relax both yourself and your passengers in car.

Wish you have an unforgettable journey accompanied by this car radio. Good luck to you!
