How to Install a 2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo Head Unit Perfectly

As a car owner who is keen on pursuing high-quality in-car life, you must want your car be equipped with upgraded and new features. Under this circumstance, you can replace your old factory radio with a brand new multifunctional car radio. If you have any related installation experience before, you can also finish the whole installation process under a correct installation guide. Here I would like to share a 2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo installation instruction from Seicane with you. If you have the same car model and plan to install the car radio by yourself, you can carefully refer to the following instruction.

2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo after installation

2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo after installation

Precautions for this installation:

1.Before you start up any work, park your car well and unplug the negative power cable to avoid any danger.

2.Please make sure that all fastened wires are isolated with electrical tape.

3.Please make sure the ignition is off to avoid short circuit.

4.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400

2008 2009 2010 FORD S-max car radio installation instruction

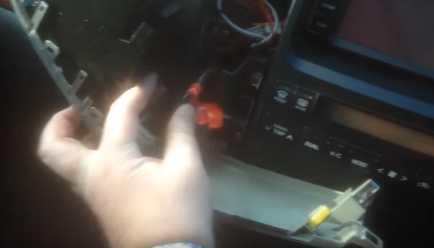

1. Gently squeeze, pull and lift away the surrounding panels on each side.

Gently squeeze, pull and lift away the surrounding panels on each side

Gently squeeze, pull and lift away the surrounding panels on each side

2. Grip gently at the bottom and lift the air conditioning vents.

Grip gently at the bottom and lift the air conditioning vents

Grip gently at the bottom and lift the air conditioning vents

3. Squeeze clips to release electrical connectors.

Squeeze clips to release electrical connectors

Squeeze clips to release electrical connectors

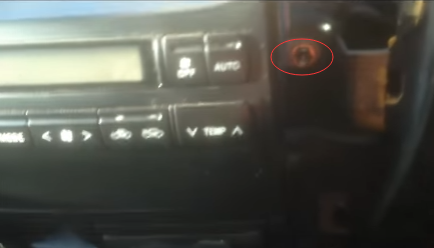

4. There are four screws holding the radio on the dashboard. Remove them with a screwdriver.

There are four screws holding the radio on the dashboard. Remove them with a screwdriver

There are four screws holding the radio on the dashboard. Remove them with a screwdriver

5. Gently take out the original radio.

6. Disconnect connectors and cables at the back the radio.

7. Check all the accessories for the new Seicane car radio.

Check all the accessories for the new Seicane car radio

Check all the accessories for the new Seicane car radio

8. Connect the harnesses to the back of the new Seicane car radio.

Connect the harnesses to the back of the new Seicane car radio

Connect the harnesses to the back of the new Seicane car radio

9. Connect the Seicane car radio to your original radio’s plugs.

10. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.

11. Put the new Seicane car radio into the dash.

12. Put everything into their original place. All the installation is done.



That’s all about how to install a 2008 2009 2010 FORD S-max car radio. If there are any questions, please contact your dealer or turn to a professional for help. For avoiding damage to your car or car radio, it is suggested that you should go to a car radio upgrade center to ask professional technician to help you install the new car radio.

To help you better select an ideal car radio, I’d like to recommend an amazing 2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo from Seicane to you. For more details, please click:

http://www.seicane.com/android-1024-600-2008-2010-ford-s-max-radio-gps-navigation-dvd-player-obd2-wifi-bluetooth-mirror-link-backup-camera-1080p-video-steering-wheel-control-mp3-aux-usb-sd-s127688e

This amazing 2008 2009 2010 FORD S-max Bluetooth Car Radio Stereo, based on the latest Android 6.0 operation system, 8-core 1.5 GHz RK-PX5 A53 processor and 2GB RAM, comes with a wide range of comprehensive features to meet your practical and entertainment needs in your car.

With this all-in-one radio installed in your car, you can get access to practical and entertainment features, including the high-end 3D GPS navigation system, FM/AM radio tuner, Bluetooth hands-free calls, Bluetooth streaming music, CD/DVD player, AUX, steering wheel control, USB & SD connection, etc.

Apart from these basic features, there are also some optional features can be added to this unit according to your preference and requirement, such as car DVR, backup camera, DAB and so on forth.

With these multiple features, you are able to have a more convenient, comfortable and relaxing in-car life than ever before. Just add it to your shopping cart and wish you have a nice trip from now on! Good luck to you!
