To improve your in-car environment and take your driving experience up a notch, one of the easiest ways is to replace your factory radio with a remarkable car radio which is compatible with a number of upgraded functions as well as advanced features. Here I would like to introduce how to remove a factory radio and install a new car radio in 2009-2015 Toyota Highlander. If you have the same dashboard, you can refer to it.
2009-2015 Toyota Highlander Radio after installation
Some tips before the installation:
1.Please disconnect the power before the installation.
2.Please prepare a lever and a screwdriver before the removal and the installation.
3.Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.
4.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400
2009-2015 Toyota Highlander car radio installation steps
1. Carefully pry lower dash panel out.
Carefully pry lower dash panel out
1-1
2. Grip onto the AC control panel, and give it quick tug to remove.
Grip onto the AC control panel, and give it quick tug to remove

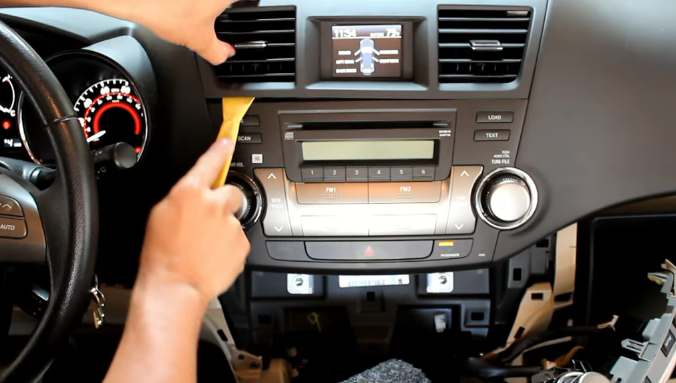

3. Gently pry out air vent and bazel above the radio.
Gently pry out air vent and bazel above the radio
4. There are four 10mm bolts to be removed.
There are four 10mm bolts to be removed
5. Remove these four 10mm bolts with a screwdriver.
Remove these four 10mm bolts with a screwdriver
6. Gently pull the radio out of the dashboard.
Gently pull the radio out of the dashboard
7. Disconnect the connectors and cables at the back of the radio.
8. Check all the accessories for the new Seicane car radio.
9. Connect the harnesses to the back of the new Seicane car radio.
10. Connect the Seicane car radio to your original radio’s plugs.
11. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.
12. Put the new Seicane car radio into the dash.
13. Put everything into their original place.
That’s all about how to remove and install a car radio for 2009-2015 Toyota Highlander. If there are any questions, you can contact with your dealer for seeking advice or ask a professional for help. If you have no experience at all, you can also go to a car radio upgrade center to ask a technician to install it directly.
To help you better select a suitable car radio, I’d like to share a 2009-2015 Toyota Highlander car radio from Seicane with you. Please check the link below for more details.
With this excellent 2009-2015 Toyota Highlander car radio in your car, you are able to build up a comfortable car interior environment and have a high-quality driving experience.
Featured with a super large 10.2 inch HD 1024*600 multi-touch screen, you are able to enjoy the amazing display visual effect when you play videos, movies and have a good recognizing about the road condition ahead. The high-precision GPS navigation system enables you to reach your ideal destinations through its turn-by-turn directions and voice prompts. Besides, the additional features can also add a lot of fun to your driving. Wish you like it and good luck to you!
