The Fool-proof Tutorial on a 2006-2012 Mercedes Benz Viano Vito Radio Removal and Installation to A New MP3 TV Player

What do you think is the most useful ways to help you relax in car? As far as I am concerned, it is to enjoy your most music while you are navigating to your desired destinations under the guidance of the most accurate direction at the same time. So how can you make it come true? Actually, you can try to replace your factory radio with a new aftermarket car radio which can support a wide range of features. Here I’d like to share car radio installation guide from Seicane with you which is not only for 1995-Present Mercedes Sprinter but also for 2006-2012 Mercedes Benz Viano Vito. You can refer to it if you own the same or similar dashboard.

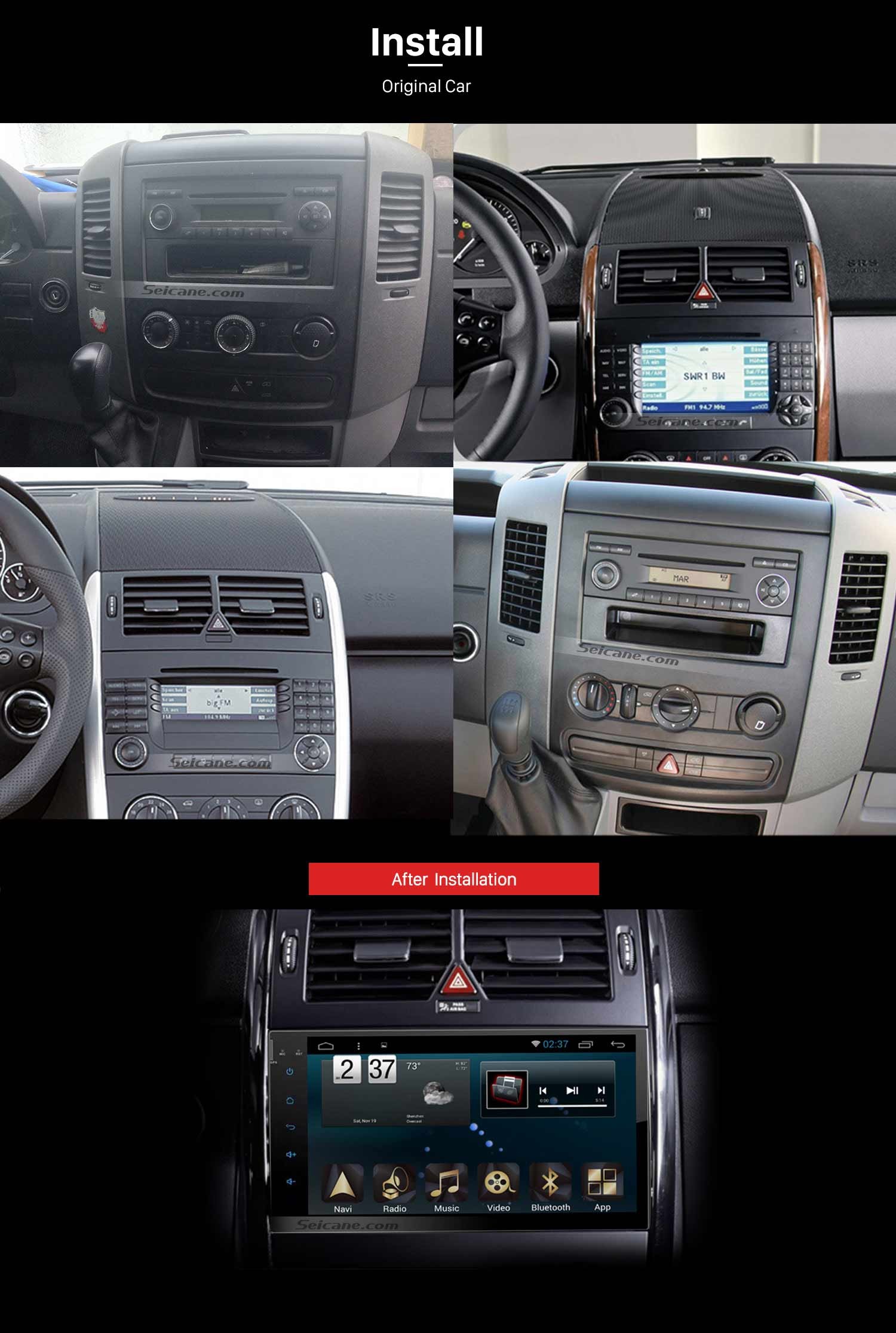

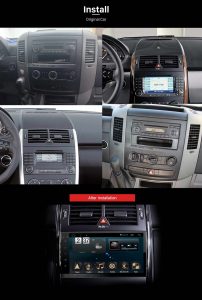

2006-2012 Mercedes Benz Viano Vito Radio after installation

2006-2012 Mercedes Benz Viano Vito Radio after installation

Precautions for this installation:

1.Before you start up any work, park your car well and unplug the negative power cable to avoid any danger.

2.Please make sure that all fastened wires are isolated with electrical tape.

3.Please make sure the ignition is off to avoid short circuit.

4.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400



2006-2012 Mercedes Benz Viano Vito installation guide

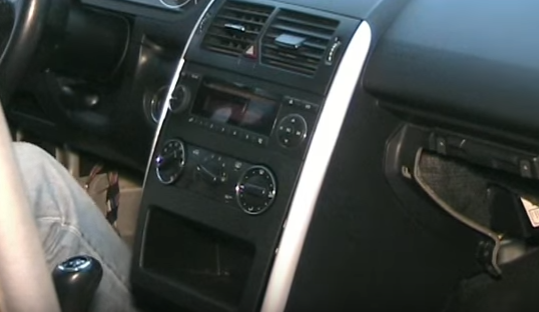

1. The original car radio.

The original car radio

The original car radio

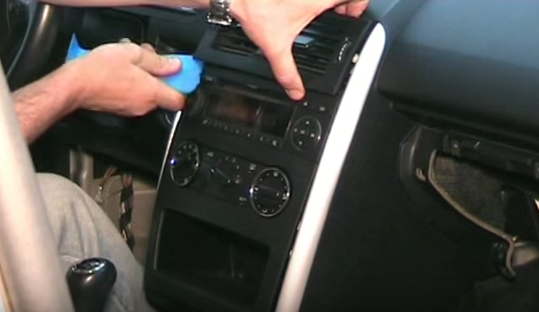

2. Remove the air vent with a plastic removal tool.

Remove the air vent with a plastic removal tool

Remove the air vent with a plastic removal tool

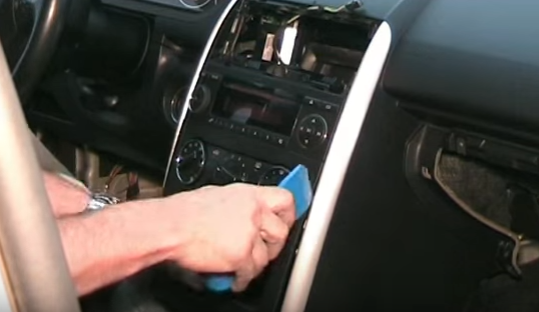

3. Remove the trim panel with a plastic removal tool.

Remove the trim panel with a plastic removal tool

Remove the trim panel with a plastic removal tool

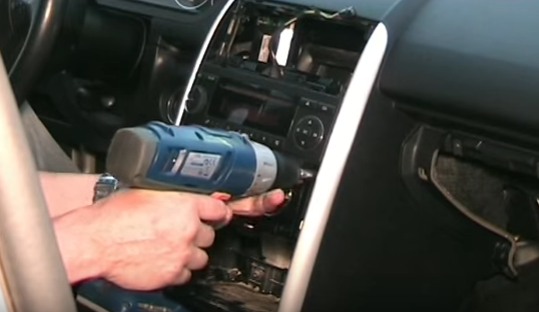

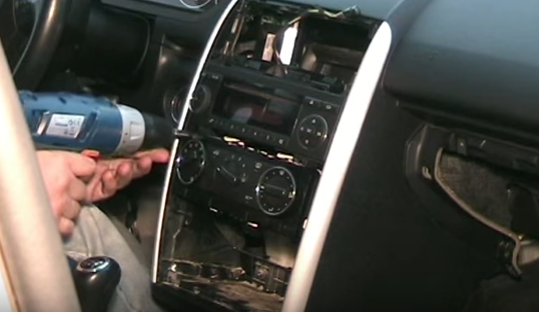

4. Unscrew four screws that are holding the radio on the dashboard.

Unscrew four screws that are holding the radio on the dashboard

Unscrew four screws that are holding the radio on the dashboard

4-1

4-1

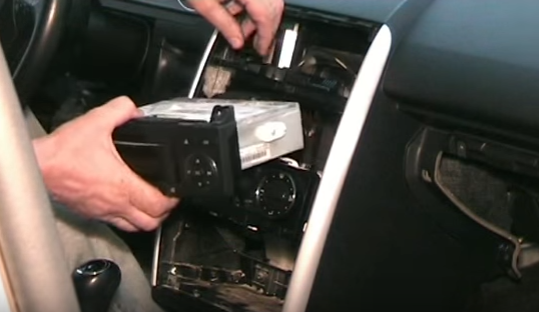

5. Take out the original car radio.

Take out the original car radio

Take out the original car radio

6. Disconnect the connectors at the back of the radio.

7. Check all the accessories for the new Seicane car radio.

8. Connect the harnesses to the back of the new Seicane car radio.

9. Connect the Seicane car radio to your original stereo’s plugs.

10. Turn on the new Seicane car radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.

11. Put the new Seicane car radio into the dash.

12. Put everything into their original place. All the installation is done.



The above is the entire installation guide for a 2006-2012 Mercedes Benz Viano Vito car radio, wish it can help with your installation. If you come across any problems, you can turn to your dealer, a professional or someone experienced for help. If you haven’t got a suitable car radio for your car, you can check out the following link which is about an ideal   car radio from Seicane.

http://www.seicane.com/9-inch-radio-touch-screen-for-2006-2012-mercedes-benz-viano-vito-android-car-navigation-system-with-3g-wifi-mirror-link-obd2-bluetooth-steering-wheel-control-16g-flash-quad-core-cpu-s301183

Mainly featured with GPS navigation function, DVD, FM/AM radio, Bluetooth, USB port, SD card connection, this all-in-one car radio can be the best replacement for your factory radio in 2006-2012 Mercedes Benz Viano Vito, which can meet almost all your various needs in car. Let’s take the GPS navigation and Bluetooth connectivity as examples. With the help of the GPS navigation system, you can easily be led to your destinations accurately through the text-to-speech guidance. Besides, the Bluetooth for hands-free calls and streaming music is equipped in this unit, so that you can freely sync your Bluetooth-enabled mobile phone with this unit to have a safe and cheerful driving. Wish you can enjoy this 2006-2012 Mercedes Benz Viano Vito car radio on all your trips!
